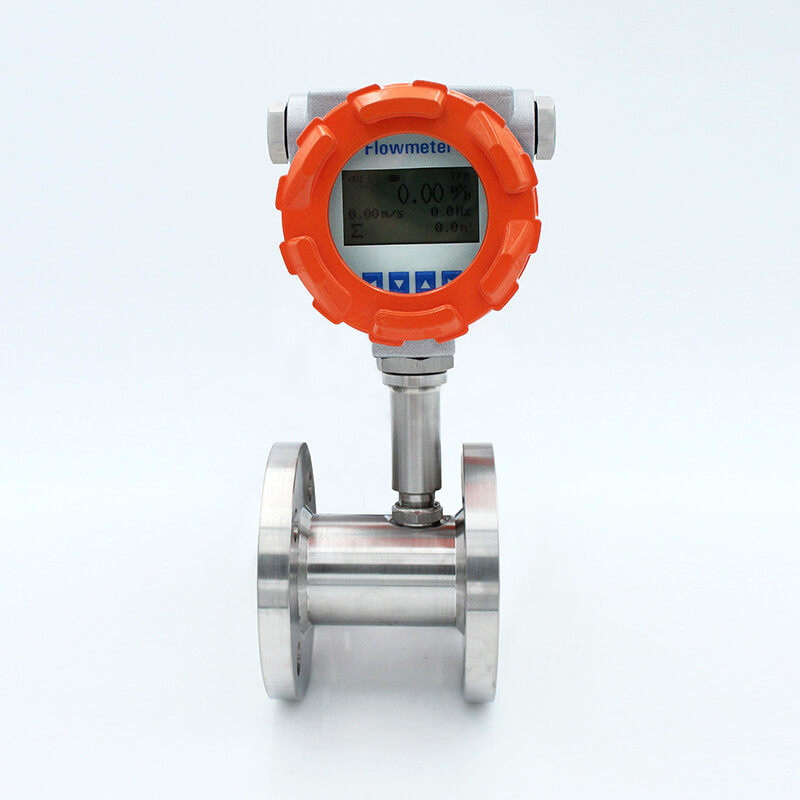

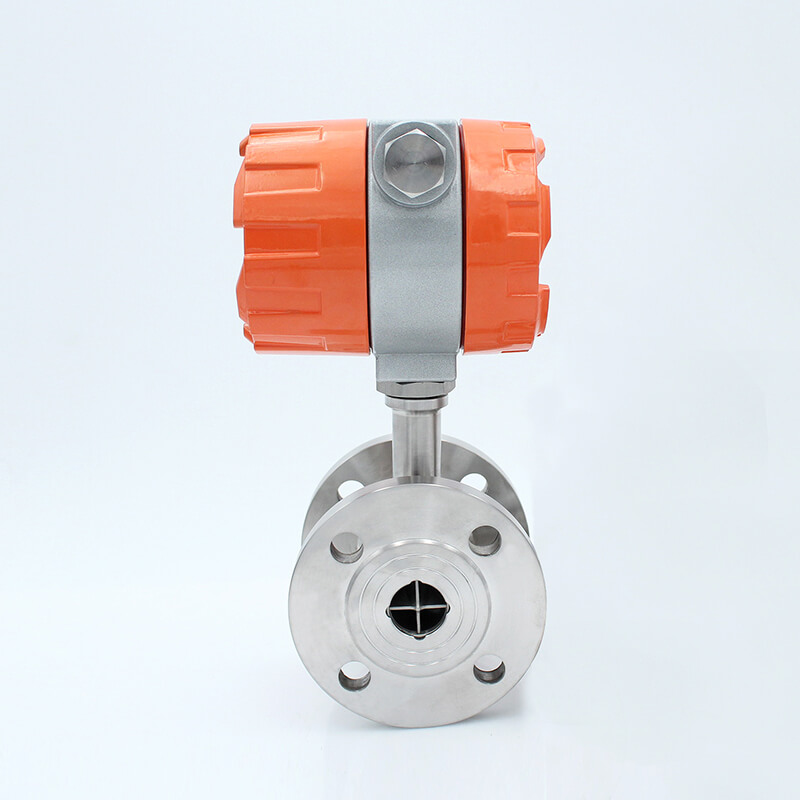

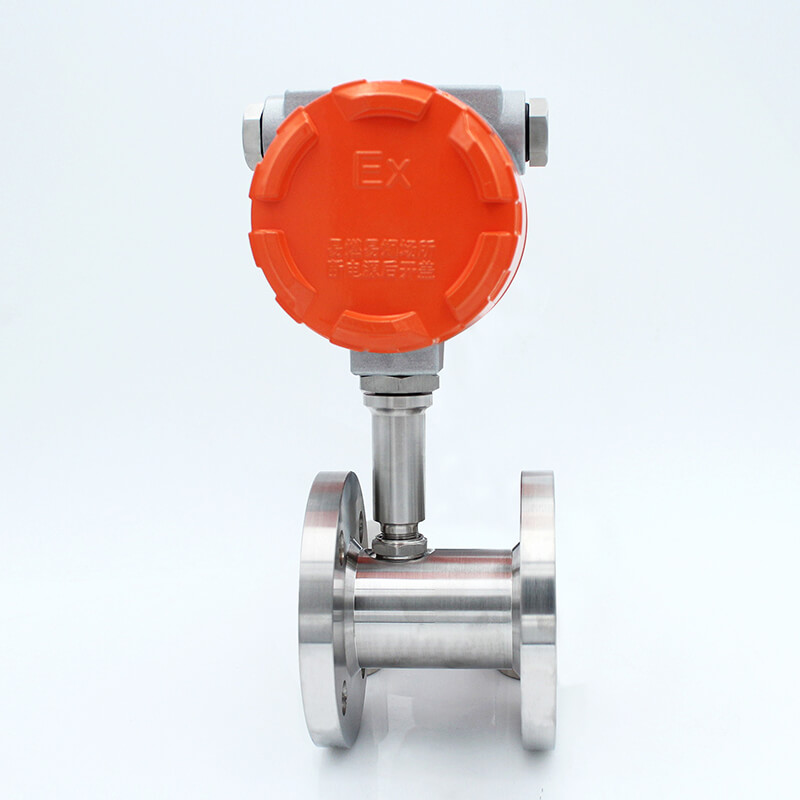

Flange Type Liquid Turbine Flow Meter

●High accuracy, generally up to ±1%R, ±0.5%R (R is the reading error);

●Good repeatability, short-term repeatability can reach 0.05%~0.2%. It is precisely because of the good repeatability that frequent calibration or online calibration can achieve extremely high accuracy, and it is the preferred flow meter in trade settlement;

●Can display instantaneous flow and cumulative flow on site;

●Can obtain high-frequency signals, with strong signal resolution;

●Wide range ratio, up to 1:20 for medium and large diameters, and 1:10 for small diameters;

●Compact and light structure, easy installation and maintenance, and large flow capacity;

●Can be made into an insert type, suitable for large-diameter measurement, with low pressure loss, low price, can be removed without stopping, and easy installation and maintenance.

●Supports temperature and pressure measurement, convenient for temperature and pressure compensation of gas medium;

●Supports flow conversion display function, convenient for viewing current flow on site;

●Supports split-screen display function, which can enlarge the screen to display single or two parameters (temperature, pressure, flow, operating flow, standard flow, etc.);

●Supports 4-20mA output, pulse (equivalent) output, alarm output, RS485 communication output.

Application

The flanged liquid turbine flowmeter is a precise flow measurement instrument. We offer two materials: standard SS304 and SS316. Due to its wide operating temperature and pressure range, it can measure a variety of liquid media and can be debugged under extreme conditions. It is widely used in many industrial fields. The following are the applications of liquid turbine flowmeters in different industries:

Oil and gas industry: In the oil and gas industry, liquid turbine flowmeters are widely used for oil metering and monitoring. Due to its fast response speed and high accuracy, it can effectively ensure the efficiency of oil and gas collection and transportation. In the liquefaction and transportation of natural gas, this flowmeter also plays an important role in ensuring the safe metering and use of natural gas.

Chemical industry: In the chemical industry, liquid turbine flowmeters are mainly used for accurate metering of various liquid chemicals. Due to its corrosion resistance and stability, it can adapt to harsh chemical environments and ensure safe and accurate production.

Food and beverage industry: In the production process of food and beverages, liquid turbine flowmeters take into account both hygiene standards and sealing performance, and adopt special designs and materials to ensure that the flow measurement process does not affect food safety. This is especially important for the production of liquid foods such as juice and milk.

Pharmaceutical industry: In the pharmaceutical field, the accuracy of the liquid turbine flowmeter is directly related to the production efficiency and quality control of drugs. After strict certification, it complies with the relevant regulations of drug production, ensures the accurate measurement of drug formulas, and reduces production costs and time.

Water supply and drainage system: In the process of urban water supply and drainage, liquid turbine flowmeters are widely used in the management and quality control of water resources. By monitoring the flow in real time, water supply companies can effectively manage water resources, prevent waste, and respond to emergencies such as leaks in a timely manner to ensure the overall water supply safety of the city.
